Product List
UL Listed & FM Approved Pumps

Split Case Pumps ( HS ) - Single Stage
Pump Photos
Range Chart
Cross Section
GA
Pump Curves
Tech Data
Sheet
Torque-N Curves
Databook
Type
Single Stage Axially Split Case Pumps with double entry impeller
Size Range
50mm(2") to 400mm(16") discharge nominal bore
Capacity
upto 3000m3/hr
Head
upto 200m
Speed
upto 3000rpm
Construction Single / double volute depending on head. Soft packed / mechanical seal fitted options. Horizontal / vertical shaft. CW / CCW rotation. ANSI / PN/ other Flange options.

Split Case Pumps ( HST ) - Two Stage
Pump Photos
Range Chart
Cross Section
GA
Pump Curves
Tech Data
Sheet
Databook
Type
Two Stage Axially Split Case Pumps with two single or two double entry impellers
Size Range
65mm(2.5") to 250mm(10") discharge nominal bore
Capacity
upto 1200m3/hr
Head
upto 360m
Speed
upto 3000rpm
Construction
CW /CCW rotation. Internal /external cross-over depending on size. Horizontal / vertical shaft. Soft packed / mechanical seal fitted options. ANSI / PN/ other Flange options.

Compact Split Case Pumps (CSC)
Pump Photos
Range Chart
Cross Section
GA
Pump Curves
Type
Single Stage Comapact Mechanical Seal fitted pumps for air conditioning, water supply and industrial cooling water services
Size Range
50mm(2") to 250mm(10") discharge nominal bore
Capacity
upto 1200 m3/hr
Head
upto 90m
Speed
upto 3000rpm
Construction
Standard , High pressure and vertical shaft versions. Double volute design for sizes 100mm (4") and above

NFPA Fire Pumps (HF & EF)
Pump Photos
Stack Charts
Cross Section
Technical data
Selection Chart
GA
FM Approved
UL Listed
Databook
Type
Split case Single / Two Stage & End Suction
Size Range
50mm(2")to 400mm (16") discharge nominal bore
Capacity
upto 7500gpm (1700m3/hr)
Head
upto 450psi (320m)
Speed
upto 3600rpm
Construction
Single / double volute pumps depending on pressure ratings. Two stage pumps with either two single entry or two double entry impellers for 15ft suction lift capability. Vertical shaft split case pumps for FPSO & other off-shore duties

Ship's Fire Pumps (FIFI Pumps)
Pump Photos
Range Chart
Cross Section
GA
Pump Curves
Torque-N Curves
Type
Split Case & End Suction
Size Range
100mm(4") to 450mm(18") discharge nominal bore
Capacity
upto 3600m3/hr (1000 lps)
Head
upto 200m
Speed
upto 2300rpm
Construction
Compact space optimised design. Many branch orientation options. CW / CCW rotation.

Sewage Pumps (SW)
Pump Photos
Range Chart
Cross Section
GA
Pump Curves
Type
Non Clog Sewage pumps 2 /3 vane design
Size Range
100mm(4") to 600mm(24") discharge nominal bore
Capacity
upto 3000m3/hr
Head
upto 100m
Speed
upto 1500rpm
Construction
Horizontal, vertical direct mounted, and vertical cardon shaft driven

ISO 2858 End Suction Pumps (ES)
Pump Photos
Range Chart
Cross Section
GA
Pump Curves
Technical data
Type
Single Stage End Suction Back Pull-out Pumps. Dimensional conformance - ISO2858. Performance conformances - ISO5199
Size Range
32mm to 200mm discharge nominal bore
Capacity
upto 1000 m3/hr
Head
upto 140m
Speed
upto 3000rpm
Construction
Standard / high working pressure versions. Packed gland / mechanical seal fitted strenghtened bearing options. 500mm nominal diameter pumps for high head applications. Centre line mounting options

Large End Suction Pumps ( ESL)
Pump Photos
Range Chart
Cross Section
GA
Pump Curves
Type
Single Stage End Suction Back Pull-out Pumps
Size Range
200mm(8") to 450mm(18") discharge nominal bore
Capacity
upto 3000m3/hr
Head
upto 180m
Speed
upto 2300rpm
Construction
Single / double volute depending on head range. Packed gland / mechanical seal version. Many bearings and bearing lubrication options. CW / CCW rotation. Special suction branch orientation options.

Mixed Flow Pump (EMF)
Pump Photos
Range Chart
Cross Section
GA
Pump Curves
Type
Non Clog Sewage pumps 2 /3 vane design
Size Range
100mm(4") to 600mm(24") discharge nominal bore
Capacity
upto 3000m3/hr
Head
upto 100m
Speed
upto 1500rpm
Construction
Horizontal, vertical direct mounted, and vertical cardon shaft driven

Special Pumps

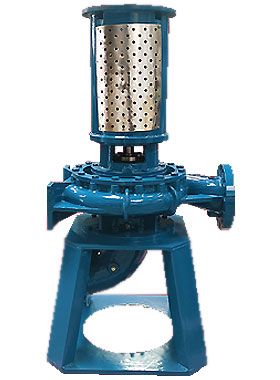

Vertical End Suction ESV & ESLV Range
Vertical End Suction ESV & ESLV Range

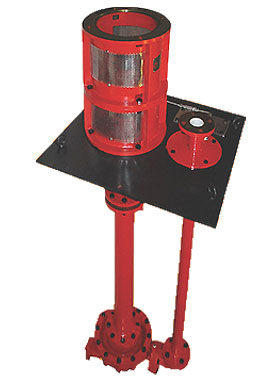

VSP Range Vertical Single Stage Sump Pump
VSP Range Vertical Single Stage Sump Pump

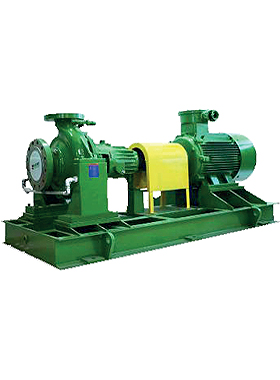

OH2 Horizontal, centerline supported,
single stage API 610 process pump
OH2 Horizontal, centerline supported, single stage API 610 process pump
